Overview

To connect your Alibaba Cloud environment to DigiUsher, create a FOCUS 1.0 export of your billing data to an Object Storage Service (OSS) bucket. FOCUS is the open billing-data standard of the FinOps Foundation. Then create a RAM user with read-only access to that bucket. This page gives the permissions, the reason for each permission, and the credentials that you enter in DigiUsher.

FOCUS export is in invitational preview

The menu Bills > Bill Subscription appears in the Expenses and Costs console only when your account has the preview access. If you do not see the menu, write to Alibaba Cloud support and ask for the access.

Cost analysis only

The exported FOCUS data is for the cost analysis only. You cannot use it for a reconciliation or for a settlement. For the official reconciliation, use the bill overview in the Alibaba Cloud Management Console.

Summary of Access Required

Component	Details
Identity	RAM user, for programmatic access only, without a console login
Authentication	Access Key ID and Access Key Secret
Access level	Read-only, on a single OSS bucket
Data	FOCUS 1.0 bill export, through the OSS of Alibaba Cloud
OSS bucket	One bucket for the billing exports only

Capability	What It Provides
Billing data	Cost analytics, chargeback and showback, budgeting, forecasting, anomaly detection

DigiUsher cannot create, change, or delete an Alibaba Cloud resource.

Prerequisites

Information to Gather

Item	How to Find	DigiUsher Field
RAM Access Key ID	RAM Console > Identities > Users > select or create a RAM user > Create AccessKey	`access_key_id`
RAM Access Key Secret	The console shows it one time only, at the creation of the AccessKey. Save it in a safe place	`access_key_secret`
OSS Bucket Name	The target bucket of the FOCUS export, from Expenses & Costs Console > Bills > Bill Subscription	`bucket_name`
OSS Bucket Prefix / Directory	The "OSS Directory" of the bill subscription, for example `billing-focus/`	`bucket_prefix`
OSS Region ID	The region of the bucket, for example `cn-hangzhou` or `ap-southeast-1`, from OSS Console > Bucket Overview	`region`

Roles Required by the Person Performing Setup

Role / Permission	Why
Billing/Finance Administrator on the management (master) account	To create the FOCUS Bill Subscription, and to give the billing service write access to the bucket one time.
RAM Administrator, for example with `AliyunRAMFullAccess`	To create the RAM user and its AccessKey pair for DigiUsher.
OSS read access on the export bucket, for example `AliyunOSSReadOnlyAccess` or a policy for that bucket	This permission goes to the RAM user of the AccessKey that DigiUsher uses. Read-only access is sufficient, and DigiUsher prefers it.

Network & Email Access (For Regulated Environments)

If your organization restricts outbound internet access or email domains, make sure that these two items are in place before you start:

Domain allowlist. Add *.digiusher.com to the allowlist of your network and your firewall. The users of your organization can then open the DigiUsher platform in their browsers.
Email allowlist. Add digiusher.com as a permitted sender domain in your email security gateway. DigiUsher sends onboarding confirmations, alerts, and reports from @digiusher.com addresses.

Setup

Create an OSS Bucket

The FOCUS export writes its files to an OSS bucket that exists already. Create a separate bucket, so that the billing data stays apart from your other data.

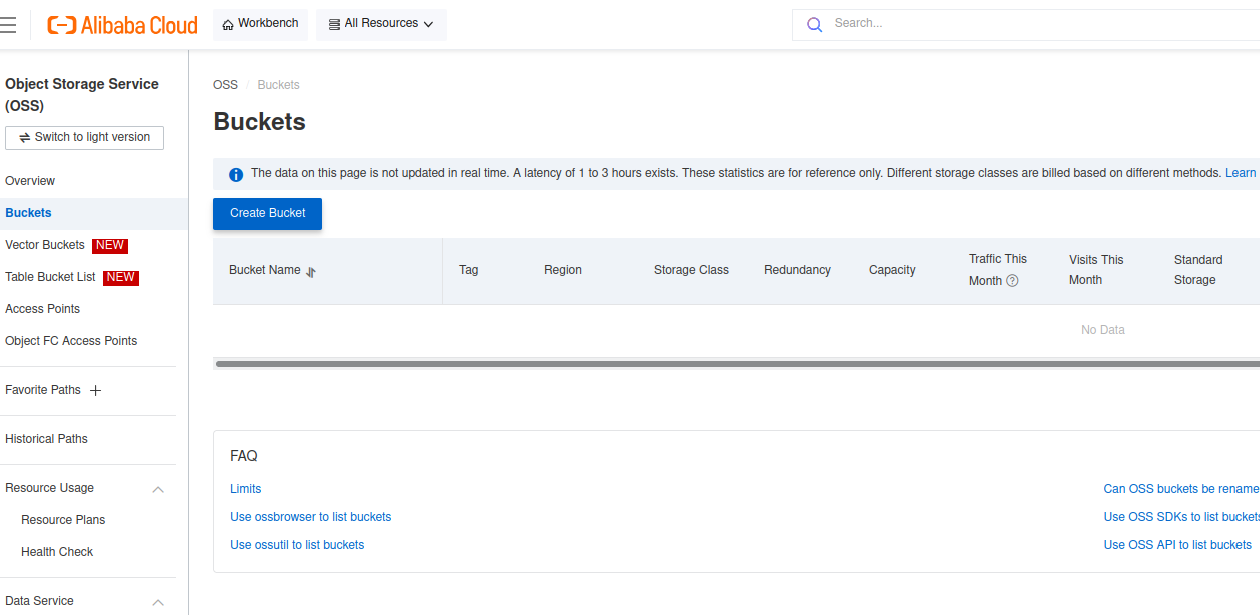

Alibaba Cloud OSS buckets page

Sign in to the Alibaba Cloud Console.
Go to Object Storage Service (OSS).
Click Create Bucket.

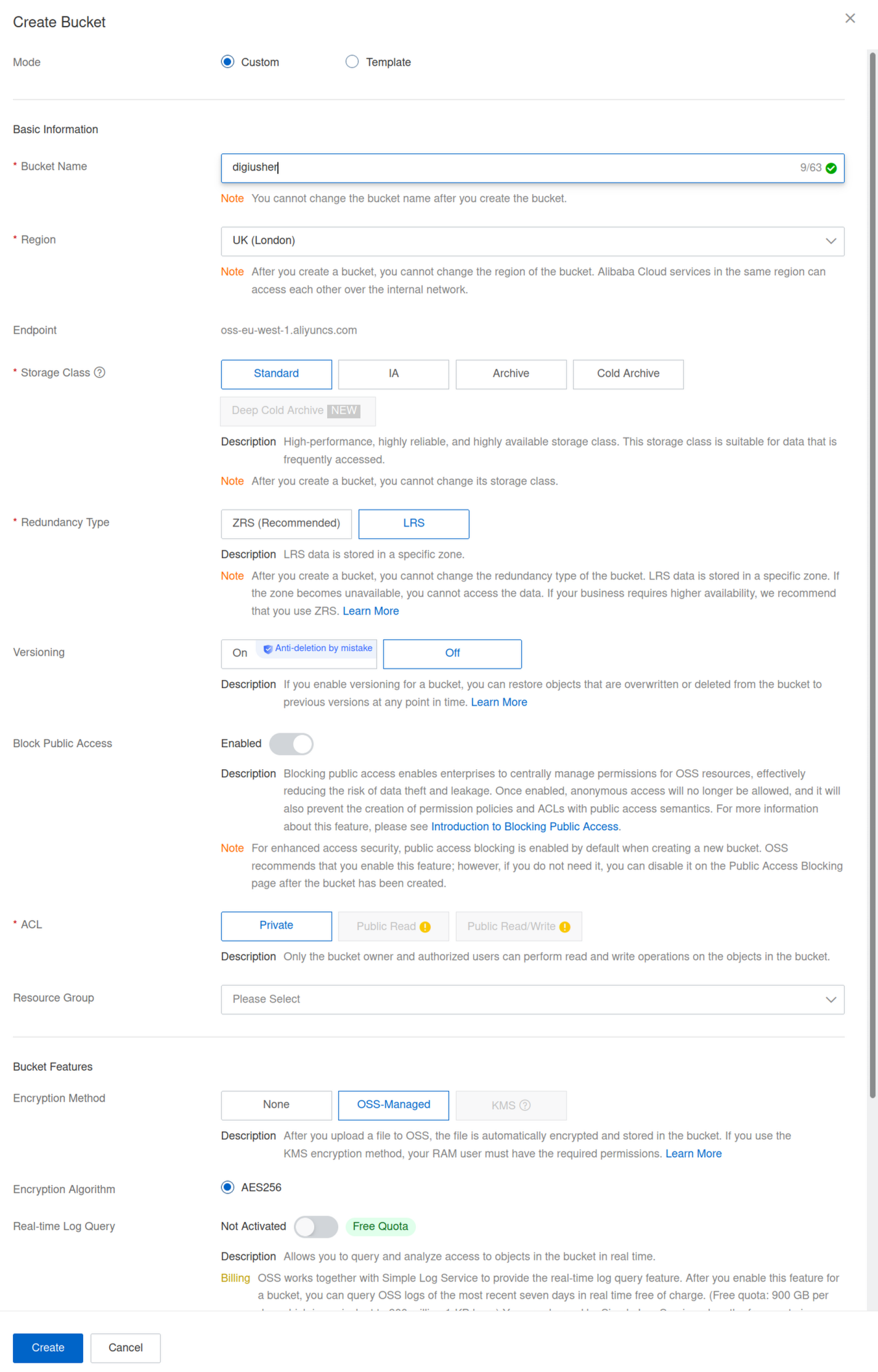

Configure the bucket:
- Bucket Name: my-focus-bucket, or another name. Note the name.
- Region: Select the region that is nearest to your main workloads
- Storage Class: Standard
- Access Control List (ACL): Private
Click OK.

Choose a unique bucket name

An OSS bucket name is globally unique in Alibaba Cloud. You cannot use a name that another user has. Select your own name. The names in the examples and in the screenshots of this page are not available.

Keep the bucket private

Keep the bucket ACL at Private. The RAM policy from Step 4 controls the access.

Set Up the FOCUS Bill Subscription

This step lets the Expenses and Costs service write the FOCUS billing data into your OSS bucket automatically.

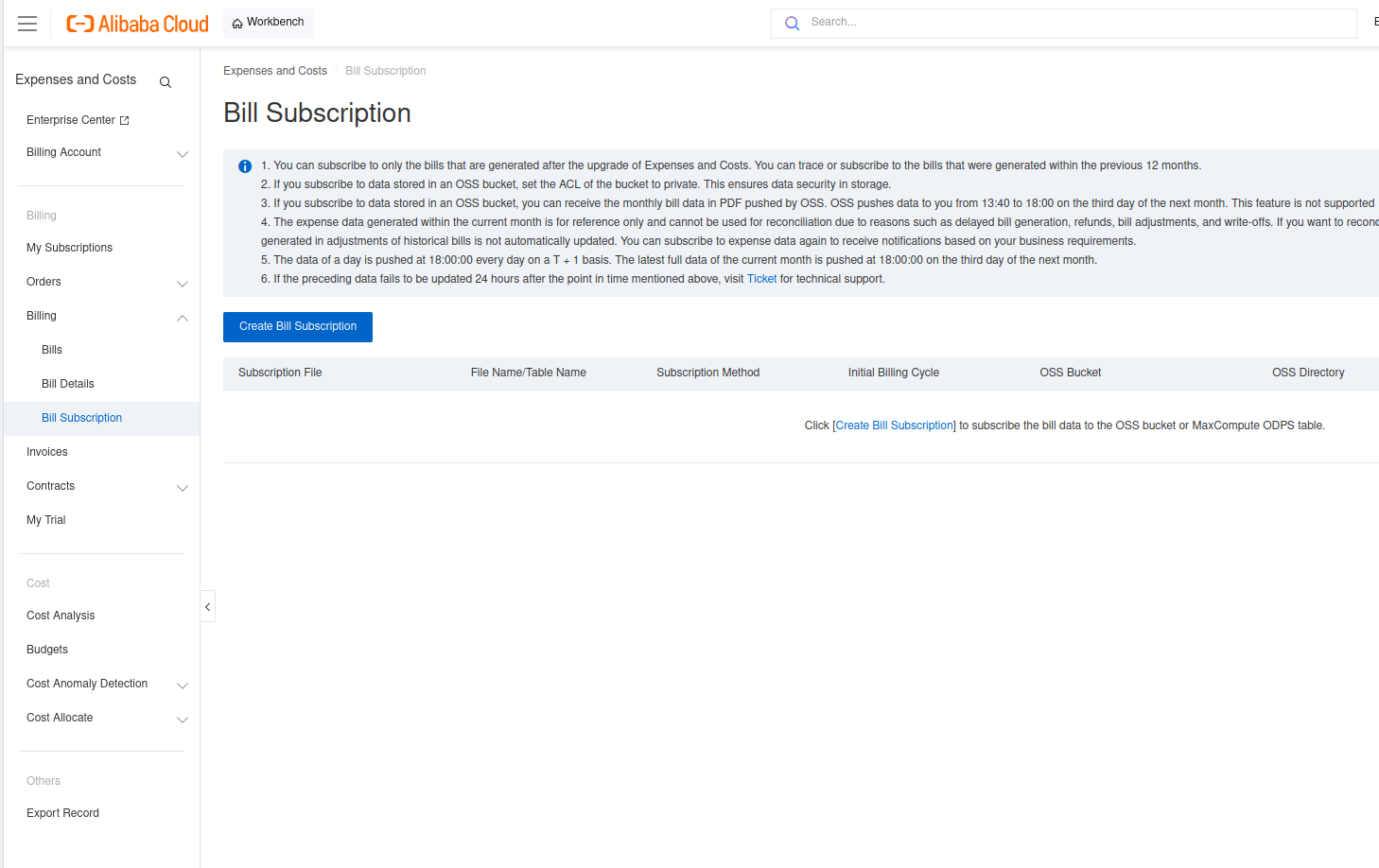

In the Expenses and Costs console, go to Bills > Bill Subscription.

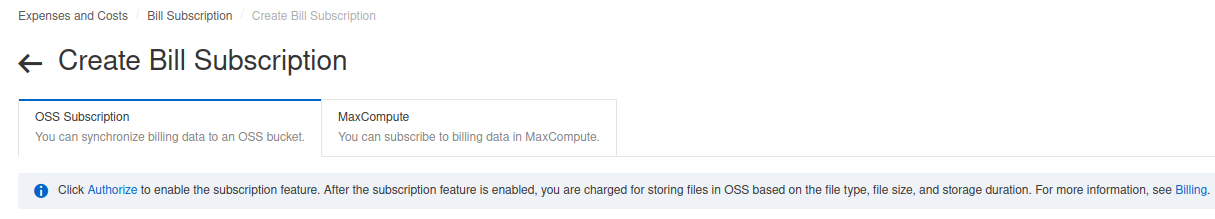

Click Create Bill Subscription.
If this is your first OSS subscription, give the authorization:
- Click Authorize.

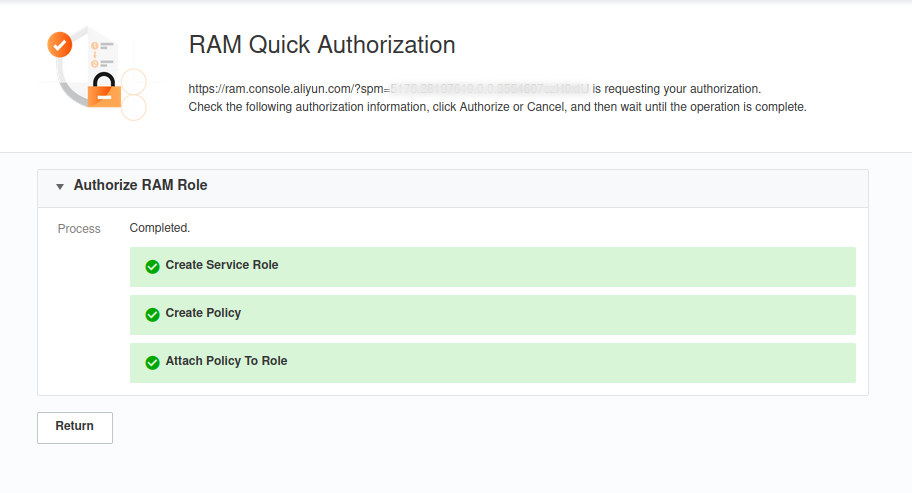

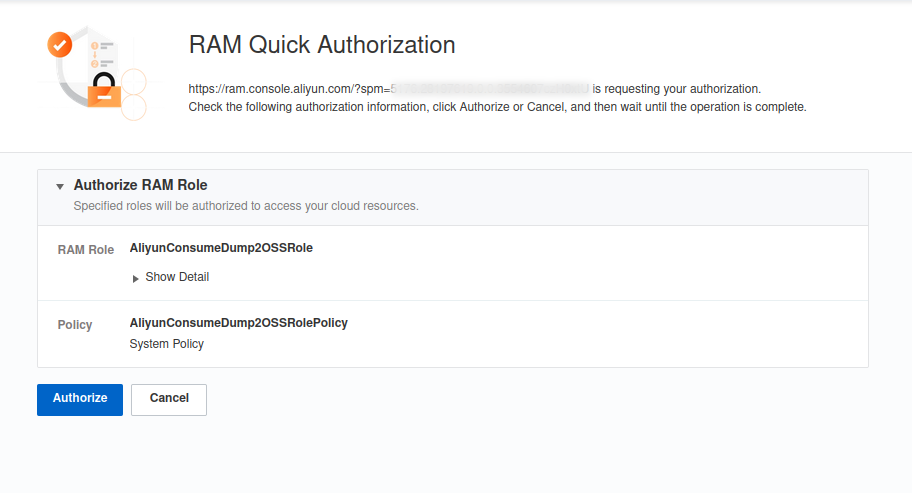

- On the RAM Quick Authorization page, read the role AliyunConsumeDump2OSSRole and click Authorize. The billing service then has write access to OSS, and it can write the files for you.
- Wait until Alibaba Cloud creates the role and attaches the policy. Then click Return.

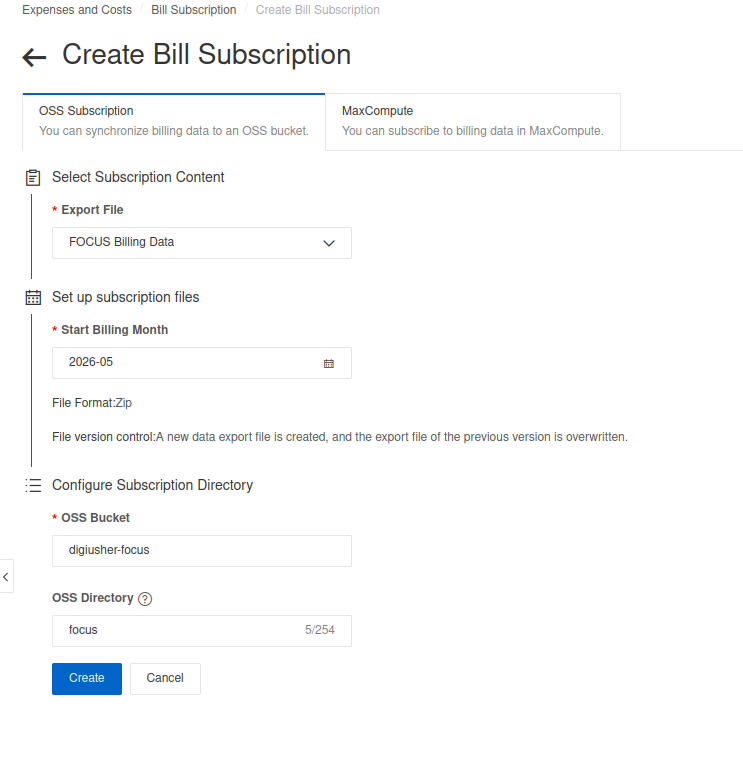

In the OSS Subscription tab, select FOCUS Billing Data as the export type.
Set the Start Billing Month. You can select the current month, or an earlier month. The earliest month is the month when your account got the preview access.
In OSS Bucket, enter the name of the bucket from Step 1, for example my-focus-bucket.
In OSS Directory, enter billing-focus. DigiUsher then finds the data on a known path.
Click Create.

Create a RAM User for DigiUsher

Create a separate RAM user with programmatic access only, through the API. This user gets read-only access to the billing export bucket, and to nothing else.

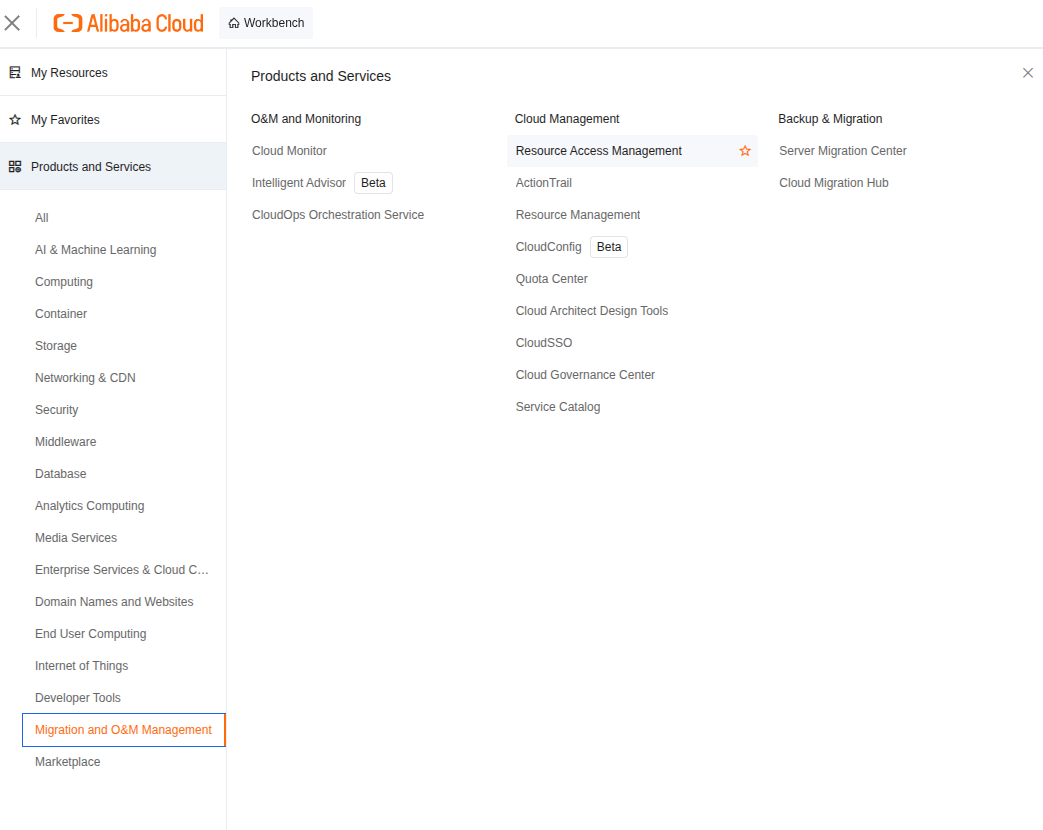

Sign in to the Alibaba Cloud Console and open Products and Services > Resource Access Management. You can also open the RAM Console directly.

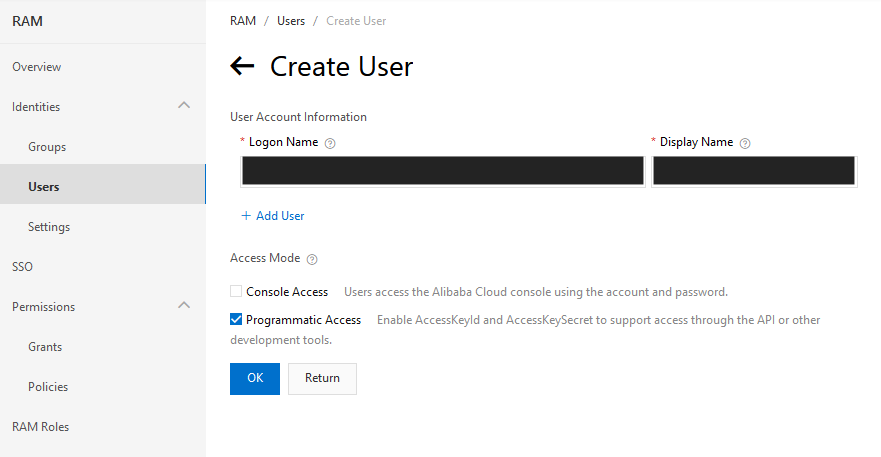

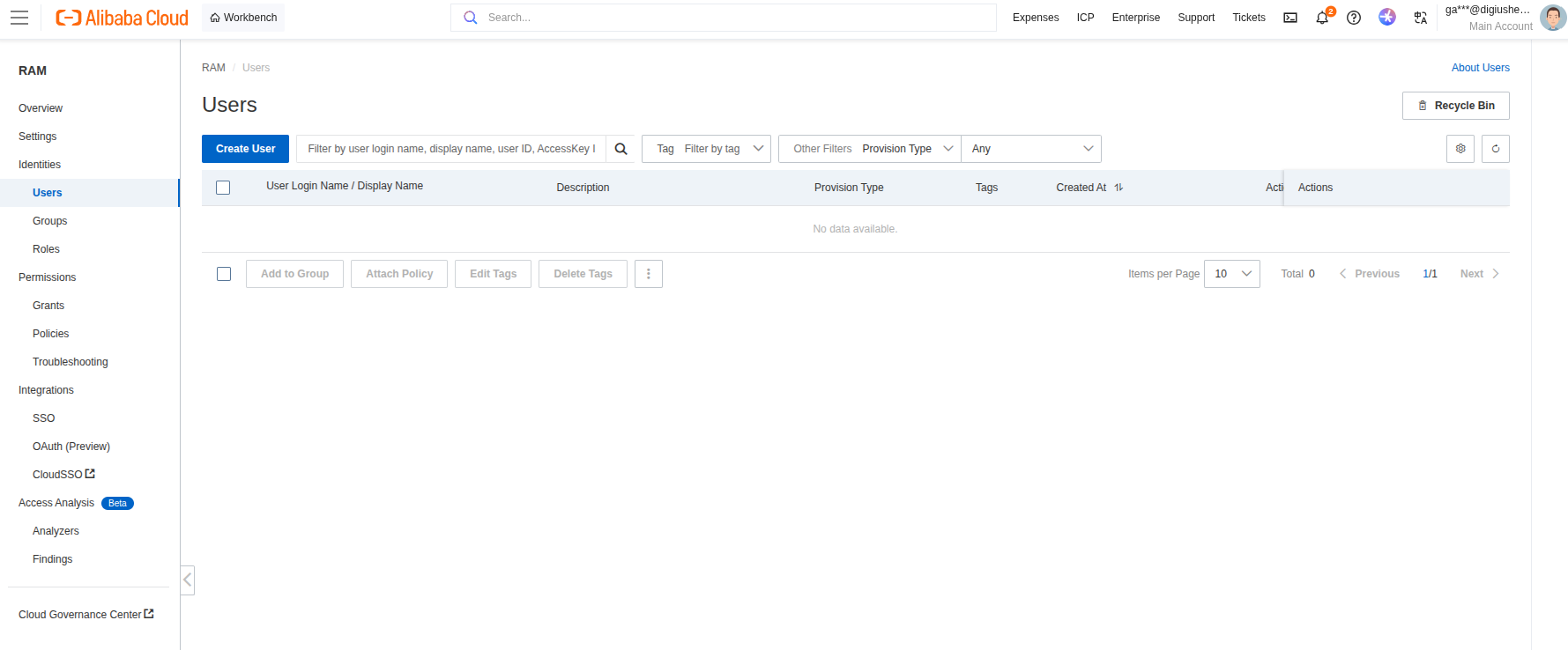

In the left navigation, click Identities > Users, then click Create User.

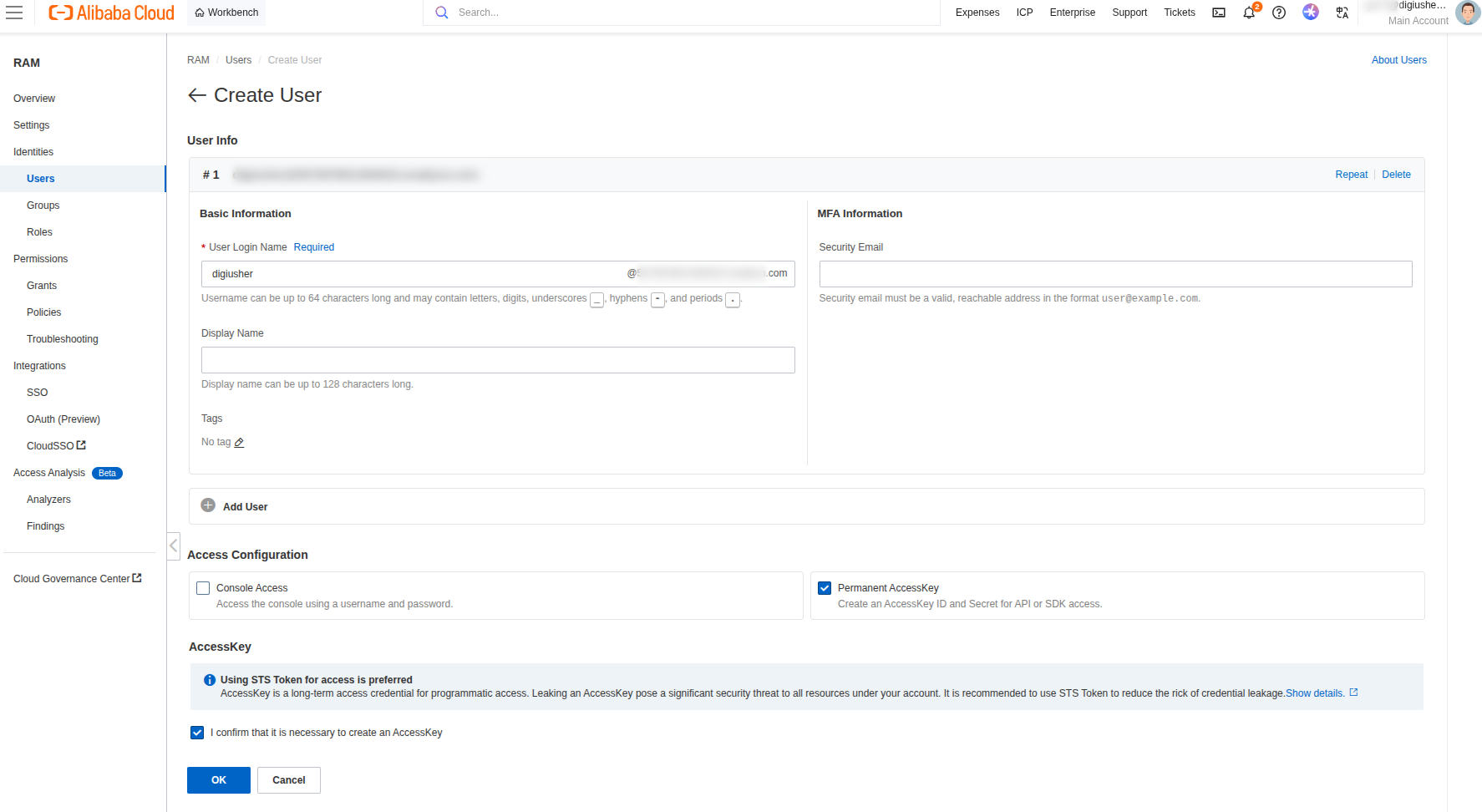

Configure the user:
- User Login Name: for example digiusher
- Access Configuration: Select Permanent AccessKey. Do not select Console Access, because the user needs programmatic access only.
- Make sure that the user needs an AccessKey.
Click OK.

Create an Access Key

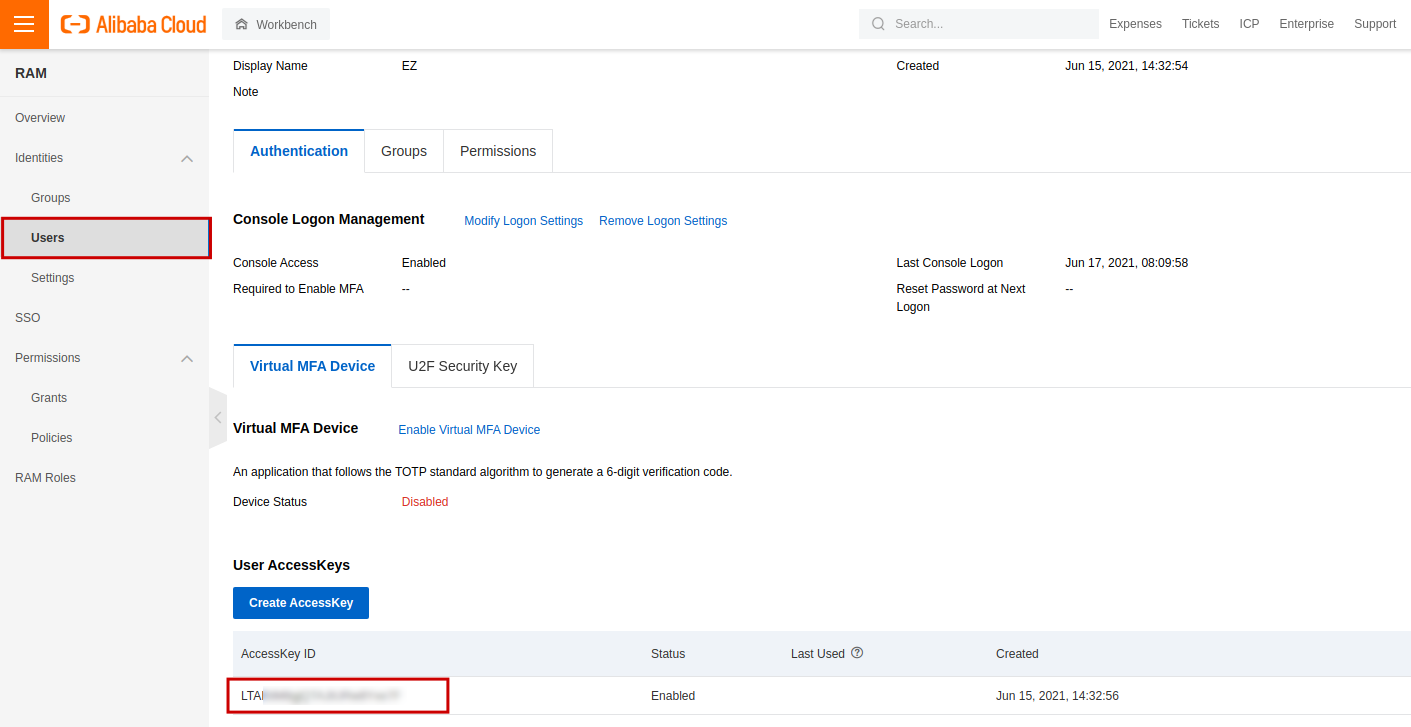

You selected Permanent AccessKey, so Alibaba Cloud creates an AccessKey ID and an AccessKey secret with the user. To create a key pair later, open the detail page of the user and click Create AccessKey on the AccessKey tab.

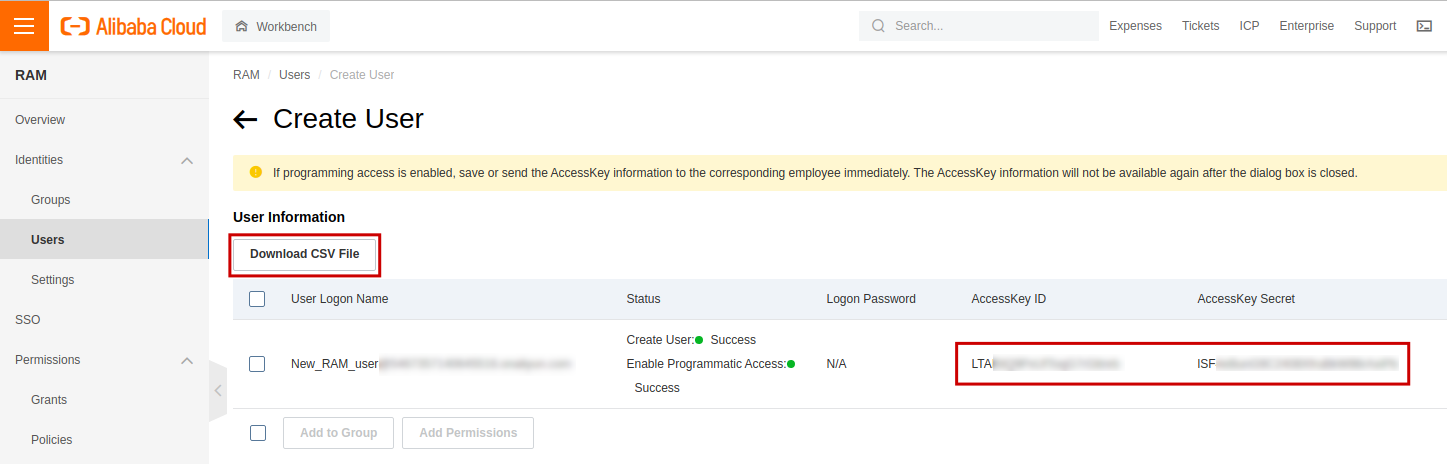

Save the Access Key ID and the Access Key Secret immediately. The console shows the Secret one time only, and you cannot read it again. Download the AccessKey.csv file.

Save your credentials

CAUTION: Save these credentials in a safe place. You enter them in DigiUsher in the last step.

Attach a Read-Only OSS Policy to the RAM User

Create a custom RAM policy with read-only access to your billing export bucket only. Then attach the policy to the user digiusher.

Create the Custom Policy

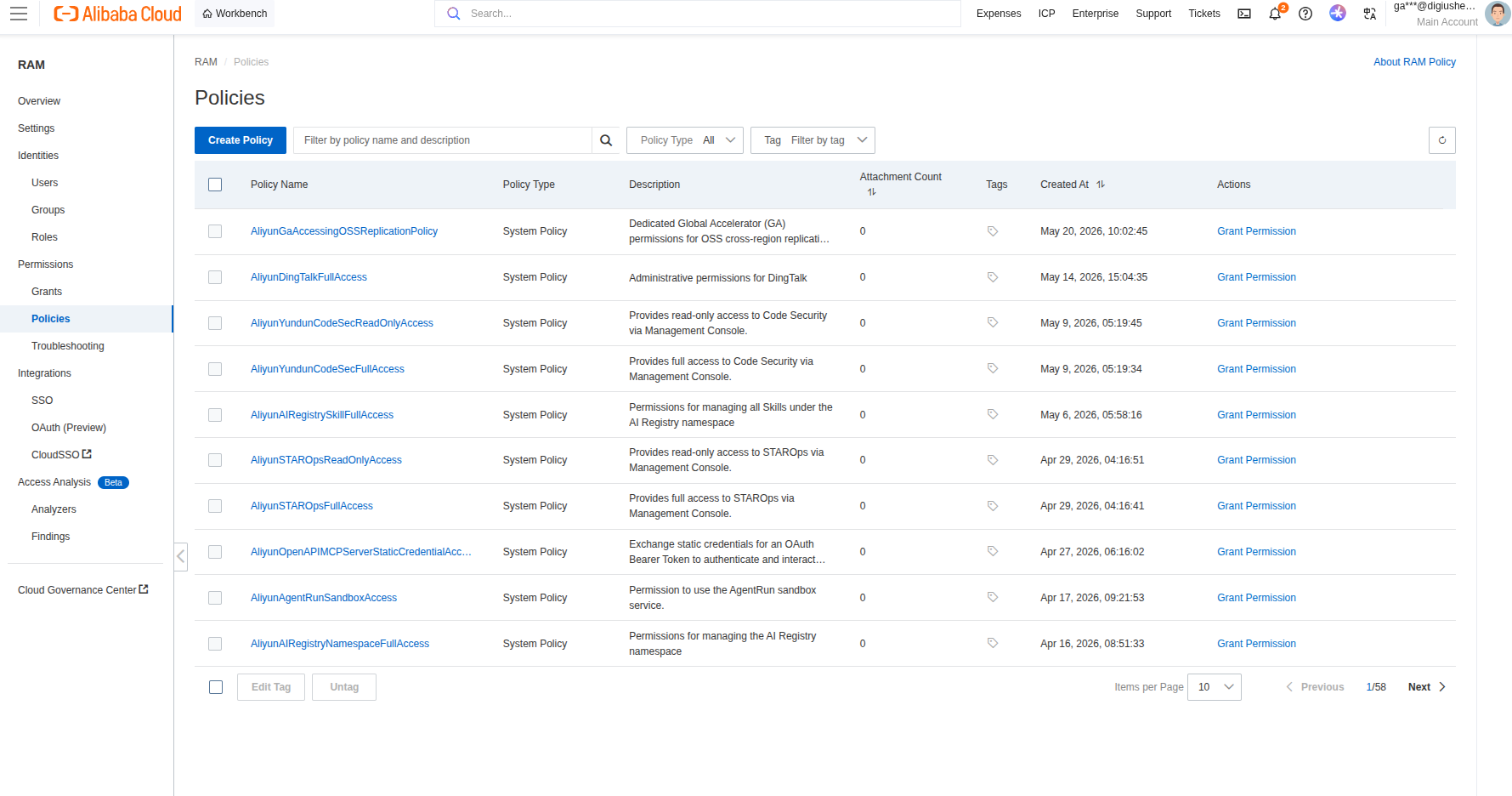

In the RAM Console, go to Permissions > Policies, then click Create Policy.
Click the JSON Editor tab.
Paste this policy. Replace your-bucket-name with the name of your bucket from Step 1:

{
  "Version": "1",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "oss:ListObjects",
        "oss:ListObjectVersions",
        "oss:GetObject",
        "oss:GetObjectAcl",
        "oss:GetBucketInfo",
        "oss:GetBucketStat"
      ],
      "Resource": [
        "acs:oss:*:*:your-bucket-name",
        "acs:oss:*:*:your-bucket-name/*"
      ]
    }
  ]
}

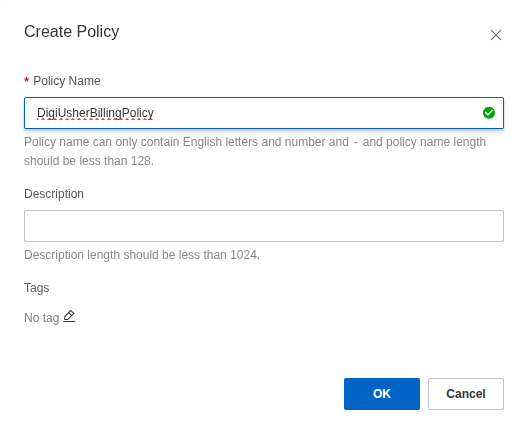

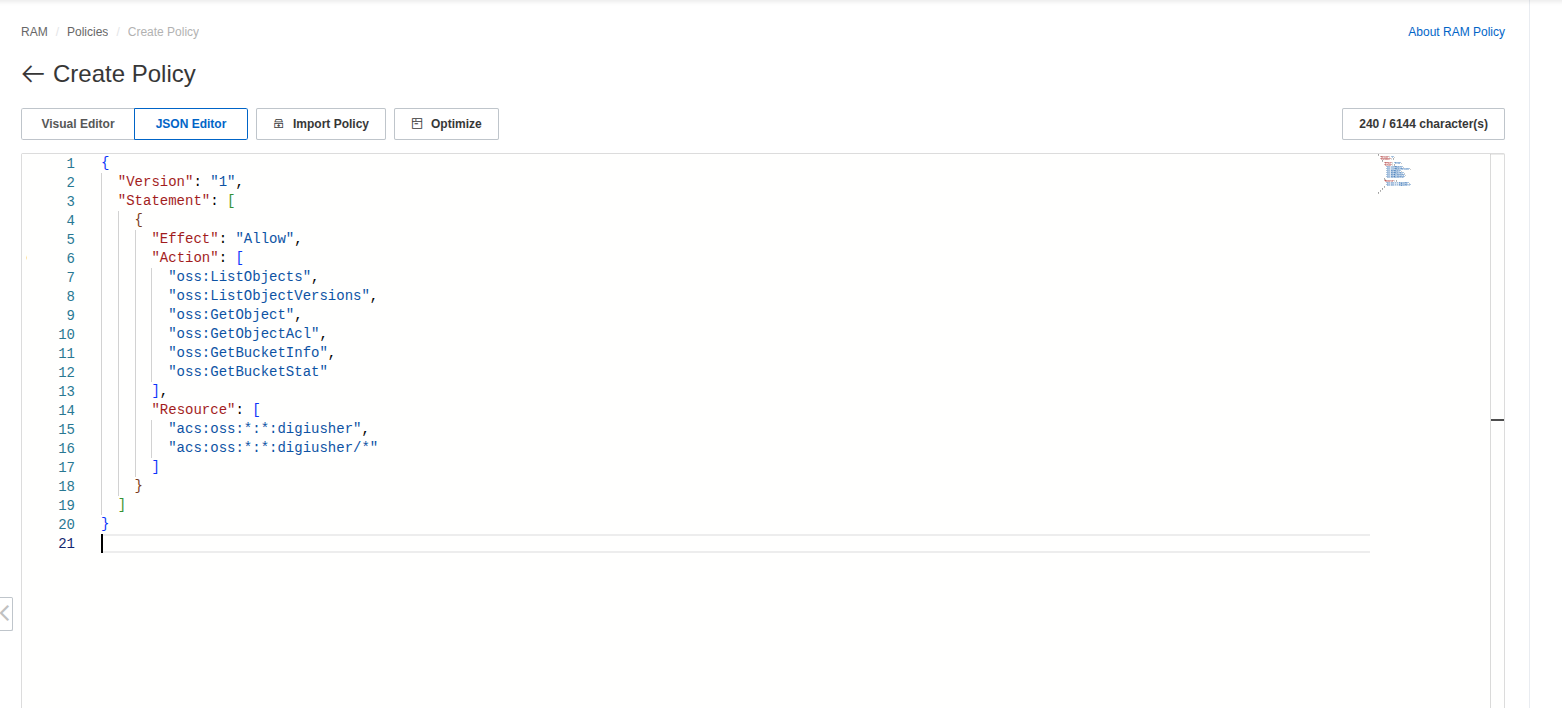

Create policy in the JSON editor 4. To let RAM make the scope of the policy narrower, click Optimize. This step is optional. 5. Click OK. 6. In the dialog, set the Policy Name to DigiUsherBillingPolicy. You can also add a Description. Then click OK. Set the policy name

Attach the Policy to the RAM User

In the RAM Console, go to Identities > Users.
Click digiusher.

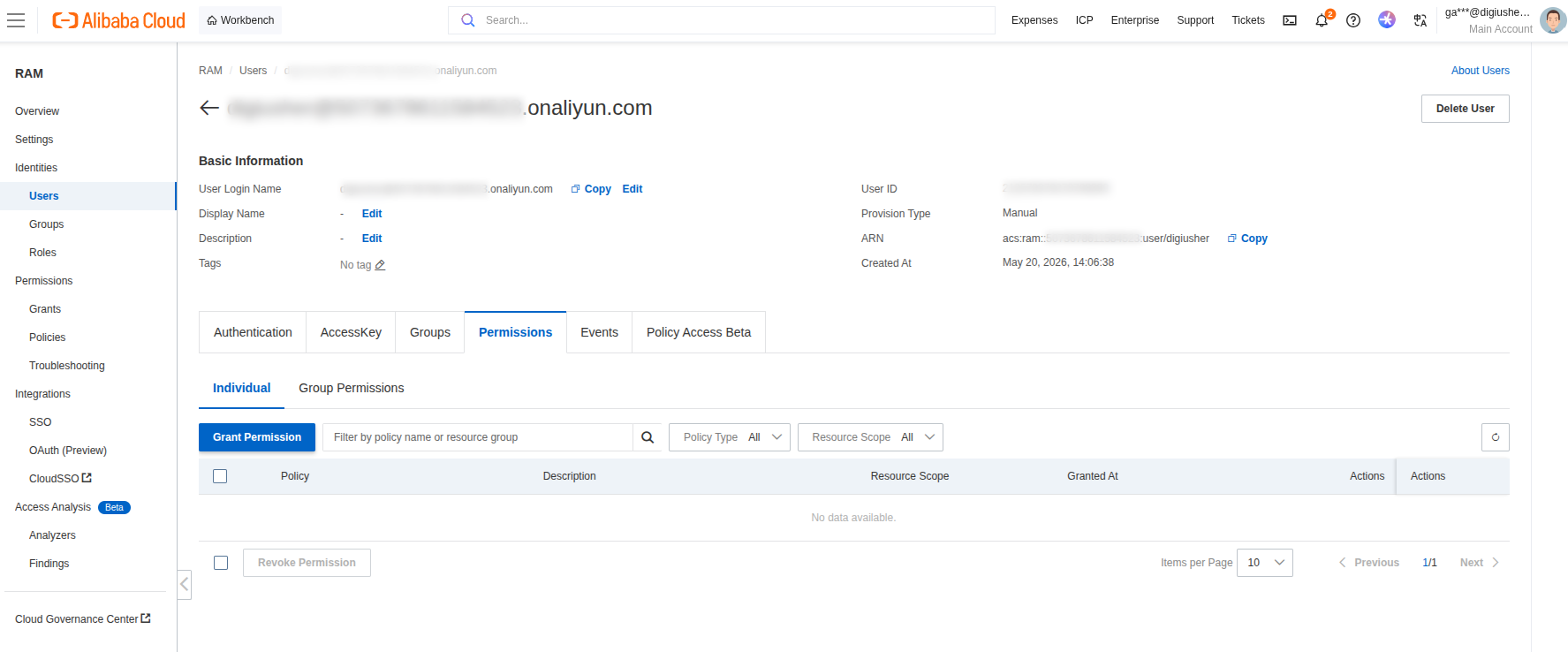

Click the Permissions tab, then click Grant Permission.

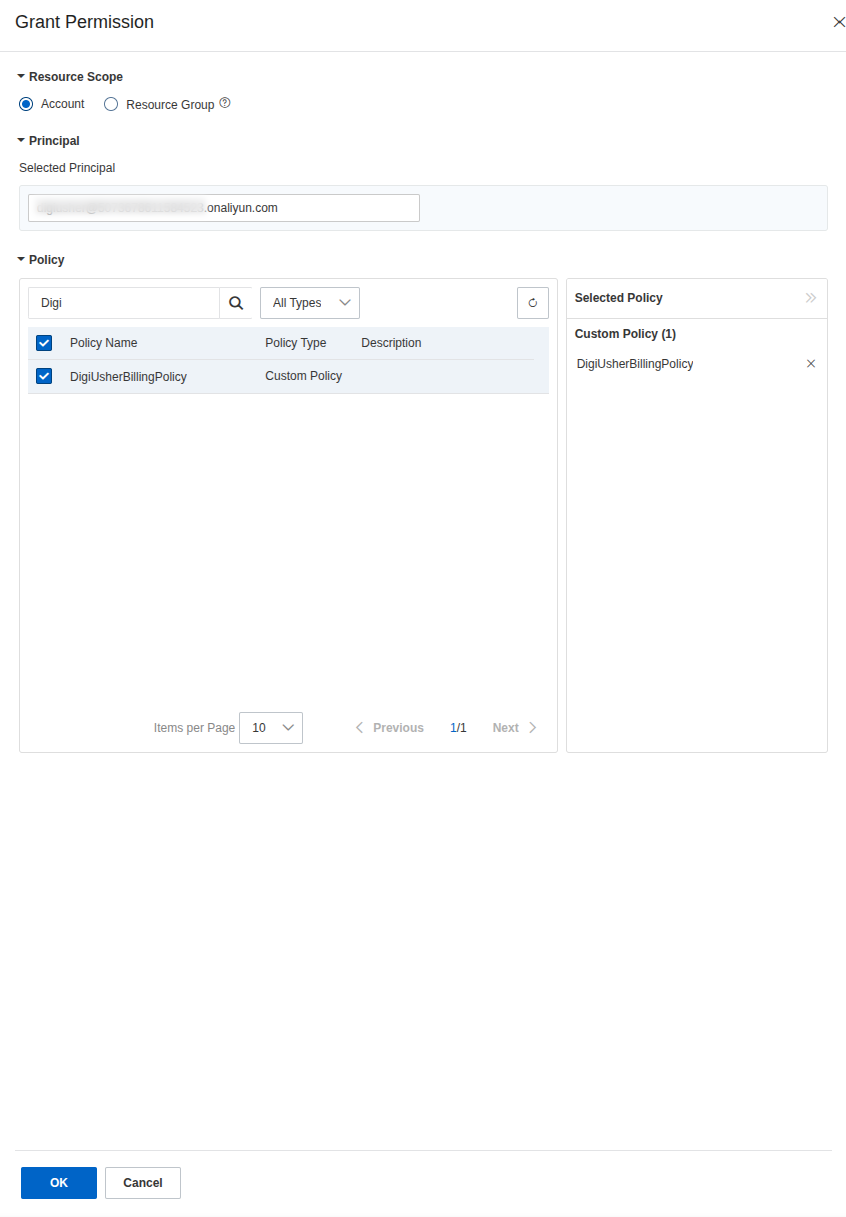

In the Policy panel, search for DigiUsherBillingPolicy, select it, and click OK.

Scoped access

The RAM user now has read-only access to your billing bucket, and to nothing else.

Connect in DigiUsher

After you complete these steps, go to Connectors > Add Source and select Alibaba Cloud. On the Configure step, enter the values in the table, then click Review. On the Connect step, click Connect source.

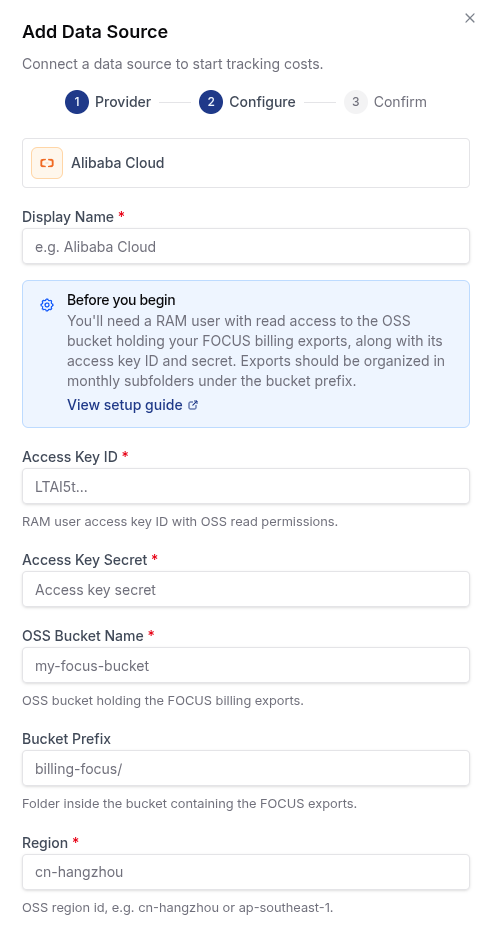

Connect an Alibaba Cloud data source in DigiUsher

Field	Where to Find
Display Name	Any label you prefer (for example `Alibaba Cloud Production`)
Access Key ID	The key ID from the AccessKey.csv file of the user
Access Key Secret	The secret from the AccessKey.csv file of the user
OSS Bucket Name	The bucket from Step 1 (for example `my-focus-bucket`)
Bucket Prefix	The directory of the subscription (for example `billing-focus/`)
Region	The OSS region ID of your bucket, for example `cn-hangzhou` or `ap-southeast-1` for Singapore. Enter the region ID only, without the prefix `oss-`.

Region IDs

DigiUsher builds the OSS endpoint from the region ID that you enter: https://oss-<region>.aliyuncs.com. The region ID of your bucket is in the OSS Console under Bucket Overview. The list OSS Regions and Endpoints also gives it.

Setup Checklist

Security

What DigiUsher CAN Access (Read-Only)

The FOCUS billing export files in the OSS bucket and the directory that you give
The object list of that bucket, which DigiUsher uses to find and download the new exports

What DigiUsher CANNOT Do

Read another OSS bucket
Create, change, or delete an object in OSS
Read another Alibaba Cloud service, such as ECS, RDS, or VPC
Read or change the billing configuration
Read secrets, credentials, or key pairs
Buy a product or change your account

Monitoring

To monitor the activity of digiusher, open the RAM Console under Identities > Users > digiusher > ActionTrail. You can also read the OSS access logs. To get them, enable the logging of the bucket under OSS Console > Bucket > Logging.

Credential Rotation

In the RAM Console, go to Identities > Users > digiusher > User AccessKeys.
Click Create AccessKey to create a new key pair.
Enter the new credentials in DigiUsher immediately.
Delete the old Access Key in the RAM Console.

Avoid ingestion gaps

Create the new key before you delete the old key. This prevents an interruption of the data collection.

Make sure that the status of the FOCUS bill subscription is Active on the Bill Subscription page.
No file appears directly after the creation. Alibaba Cloud writes the files on a schedule, into directories with a date. The final file of a month arrives after 12:00 (UTC+8) on the 4th day of the next month.
Make sure that the billing service still has the OSS write authorization. Without it, the export stops. To give the authorization again, click Authorize on the Bill Subscription page.
Make sure that the bucket name in the subscription is exactly correct. Bucket names are case-sensitive.

OSS Permission Denied error on the Bill Subscription page

The billing service cannot write to your bucket. Do the authorization again on the Bill Subscription page.
Make sure that the bucket is in the same Alibaba Cloud account as the subscription.

DigiUsher cannot read files — Access Denied

Make sure that the policy DigiUsherBillingPolicy is attached to digiusher, and that the bucket name in the policy is the bucket name in DigiUsher.
Make sure that the Access Key in DigiUsher belongs to digiusher, and not to another user.
Make sure that the status of the Access Key in the RAM Console is Active, and not disabled.

The FOCUS export is in an invitational preview. If the option FOCUS Billing Data does not appear, your account does not have the preview access yet. Write to Alibaba Cloud support and ask for it.

Need Help?

If this page does not answer your question, write to DigiUsher support at support@digiusher.com. The team will help you.
